Calibrating Gaze: Transforming Yaw and Pitch into Screen Coordinates
Gaze tracking technology is rapidly advancing, finding applications in diverse fields from user interface design to healthcare. A crucial aspect of this technology involves accurately mapping the user's gaze (represented by yaw and pitch angles) onto a screen's coordinate system. This process requires careful calibration and sophisticated algorithms. This post explores the intricacies of this transformation.
Understanding Yaw and Pitch in Gaze Tracking
Yaw and pitch are fundamental angles that define the orientation of the user's gaze relative to a reference point. Yaw represents the horizontal rotation (left-right movement of the eyes), while pitch signifies the vertical rotation (up-down movement). Accurate measurement of these angles is the cornerstone of effective gaze tracking. These angles are usually obtained through various techniques, including infrared (IR) light reflection analysis using specialized cameras, often integrated into headsets or webcams. The precision of these measurements directly impacts the accuracy of the screen coordinate mapping. Incorrect yaw and pitch readings will lead to inaccurate gaze point estimations on the screen.

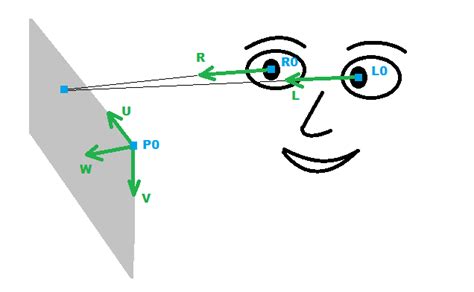

From Angles to Pixels: The Transformation Process
Converting yaw and pitch angles to screen coordinates requires a clear understanding of the camera's intrinsic and extrinsic parameters. Intrinsic parameters describe the camera's internal characteristics, such as focal length and principal point. Extrinsic parameters define the camera's position and orientation relative to the screen. This transformation often involves using projective geometry principles and matrix operations. A common approach involves using a calibration procedure where the user looks at known points on the screen; this data helps in estimating the necessary transformation matrices. Different algorithms and calibration techniques exist, each with its own strengths and weaknesses regarding accuracy and computational cost. Careful consideration of these factors is crucial in choosing the most appropriate method for a specific application. The quality of the calibration significantly influences the reliability of subsequent gaze estimations.
Calibration Techniques for Precise Mapping
Accurate gaze mapping relies heavily on proper calibration. Different methods exist, ranging from simple point-based calibrations to more complex approaches using multiple points or even a whole calibration grid. Point-based calibration typically involves the user focusing on a few predefined points on the screen. The system then uses these points to compute the transformation matrix. More sophisticated methods might employ machine learning algorithms to learn the mapping function from a larger dataset of gaze data. These more advanced methods offer the potential for improved accuracy and robustness to variations in head pose and lighting conditions. Choosing the right calibration technique is crucial for the overall accuracy of the gaze tracking system.
Advanced Techniques and Considerations
While basic transformation is relatively straightforward, several factors can complicate the process. Head movements, for instance, necessitate real-time adjustments to the transformation. Algorithms that account for head pose changes are essential for robust gaze tracking in dynamic environments. Moreover, integrating gaze tracking with other sensors, such as depth cameras, can enhance accuracy and provide more contextual information. This integration can lead to more robust and reliable gaze estimation, even in challenging conditions. The choice of algorithms and sensors heavily depends on the specific application and performance requirements.
Dealing with Head Movement and Occlusion
One of the major challenges in gaze tracking is handling head movement and partial occlusion. Head movement can introduce significant errors in the gaze estimation, as the relative position of the eyes changes. Advanced algorithms use filtering techniques and prediction models to smooth out these fluctuations and improve accuracy. Occlusion, where part of the eye region is obscured, poses another difficulty. Robust algorithms employ sophisticated image processing and machine learning techniques to handle such situations effectively. Robust algorithms are crucial for ensuring consistent performance despite these challenges. These techniques often involve advanced computer vision techniques like pupil detection and eye-tracking algorithms. Connecting MySQL Docker Container to Workbench on Windows: Troubleshooting Guide
Practical Applications and Future Trends
Gaze tracking finds extensive applications across various fields. In the gaming industry, it enables intuitive and immersive gameplay. In healthcare, it helps assist individuals with disabilities in interacting with computers and devices. Research on assistive technologies highlights the growing importance of gaze tracking. In user interface design, it facilitates the development of more natural and user-friendly interfaces. Eye tracking technology is constantly evolving, with research focusing on improving accuracy, reducing latency, and expanding its application range. Future trends include the development of more miniaturized and affordable gaze tracking devices, as well as more sophisticated algorithms capable of handling complex scenarios.
| Application | Benefits of Gaze Tracking |
|---|---|
| Gaming | Intuitive control, enhanced immersion |
| Healthcare | Assistive technology for individuals with disabilities |
| User Interface Design | More natural and user-friendly interfaces |
In conclusion, transforming yaw and pitch angles to screen coordinates is a complex process that involves careful calibration and sophisticated algorithms. Understanding these processes is key to developing accurate and reliable gaze tracking systems. Further research and development in this area will continue to unlock new possibilities and applications for this exciting technology.
